Electric motors drive almost every machine in industry today. Vibration analysis can be used to detect mechanical health condition. However, electric motor suffer from both mechanical health and electrical health issues. To diagnose the electric health of the motor, Motor Current Signature Analysis is utilized.
We offer a comprehensive range of motor current signature analysis products including portable testers, online monitoring systems, and permanently installed solutions. Our products detect both electrical and mechanical faults, providing early warning of potential failures.

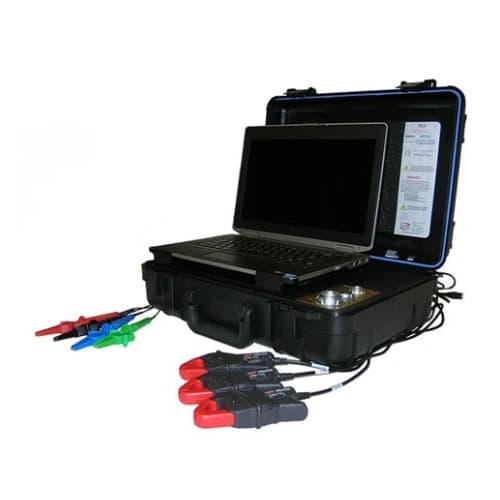

The EMAX allows you to test motors while they are operating with no interruption to production. Within seconds, it provides a comprehensive detailed look at Power Circuit, Power Quality, Stator, Rotor, and Air Gap using the Six Fault Zone approach. Portable and battery powered with six-channel simultaneous acquisition, torque and efficiency analysis, and power and current signature tests. Evaluating motors while in operation allows for efficient shutdowns so technicians can focus on problem motors.

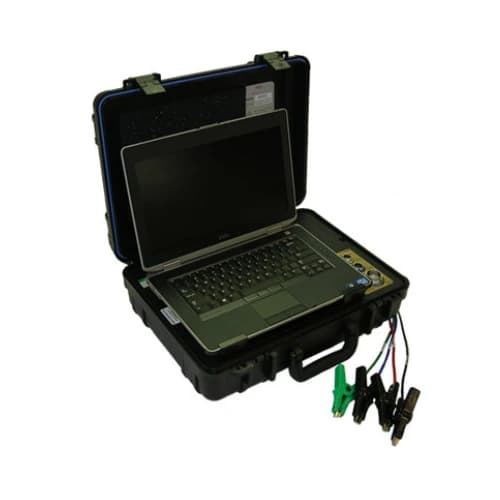

The MCE is the most comprehensive static electric motor test equipment available on the market today. Through a series of powerful diagnostic tests, it provides a complete look at the health of an offline motor. Portable and battery powered with variable test voltage from 250 to 5000 volts, it measures insulation resistance to 3 T Ohms and provides precision resistance measurement with resolution to 10 micro ohms using a 4-wire bridge test measurement.

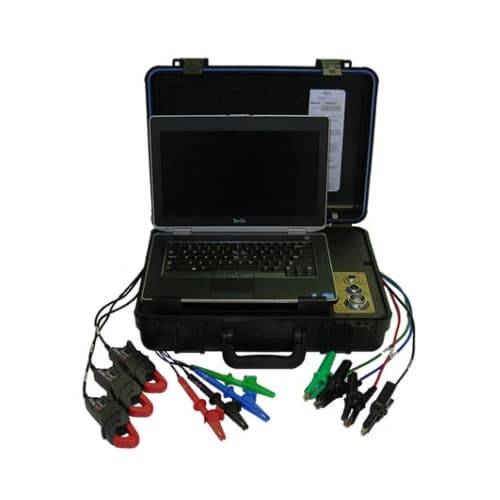

By combining the capabilities of both offline and online testing into one portable package, PdMA created the MCEmax—the single most powerful electric motor testing tool available. Regardless of motor size, type, or condition, it provides the information needed to make critical decisions. Features include portable battery power, variable test voltage from 250 to 5,000V enabling RTG, PI, or Step Voltage testing, six-channel simultaneous acquisition, and torque and efficiency analysis.

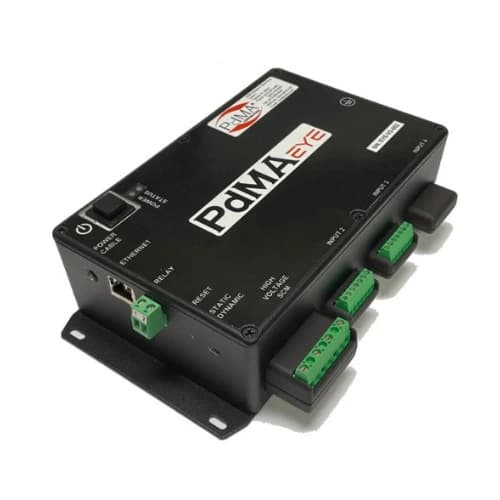

The PdMA Eye is a permanently installed 24-hour motor testing system that provides vital information while the motor runs. Powered by PdMA's MCEGold software, it warns of changes in motor condition with red or yellow color-coded alarms identifying any test data outside acceptance criteria. Features include continuous monitoring, multi-test functions, simultaneous acquisition, simple setup, data checking, restart capability, and safe operation across five fault zones.

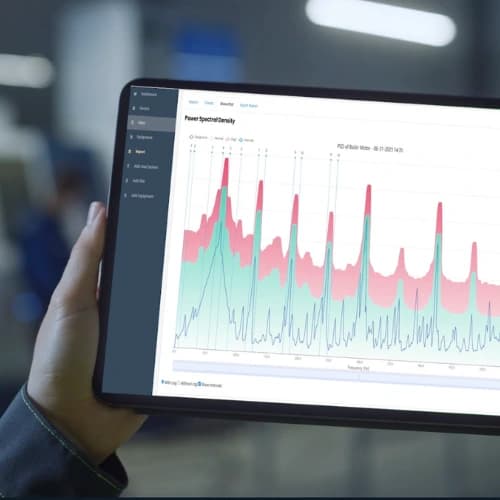

The AMT Pro is a portable rotating asset tester that provides instant diagnostic reports without sensors. Utilizing a database of over 10 million fault signatures, it detects and diagnoses mechanical faults (loose foundation, unbalance, misalignment, belt, gearbox, bearing), electrical faults (stator, rotor, winding isolation, power quality), and process issues (cavitation, clogging, overload) up to 6 months in advance. Features cloud connectivity, IoT integration, and comprehensive power monitoring.
The Artesis e-MCM excels in sensorless monitoring and diagnosing a wide range of faults using a patented True Machine Learning algorithm with over 10 million fault signatures. It performs continuous real-time analysis of voltage and current, detecting mechanical, electrical, and process-related faults up to six months in advance. Developed with NASA technology and backed by over 35 years of R&D, it features AI-Driven Digital Twin, pump performance monitoring, and efficiency & cost analysis.
The e-PCM is designed for wind turbine and generator condition monitoring without sensors. Easy installation from a single point using alternator current and voltage information. It detects and diagnoses existing and developing faults including imbalance, misalignment, bearing damage, gearbox faults, and isolation issues. Features automatic self-learning, unlimited trend recording, Power Spectral Density analysis, and simple traffic light display for fault severity indication.
